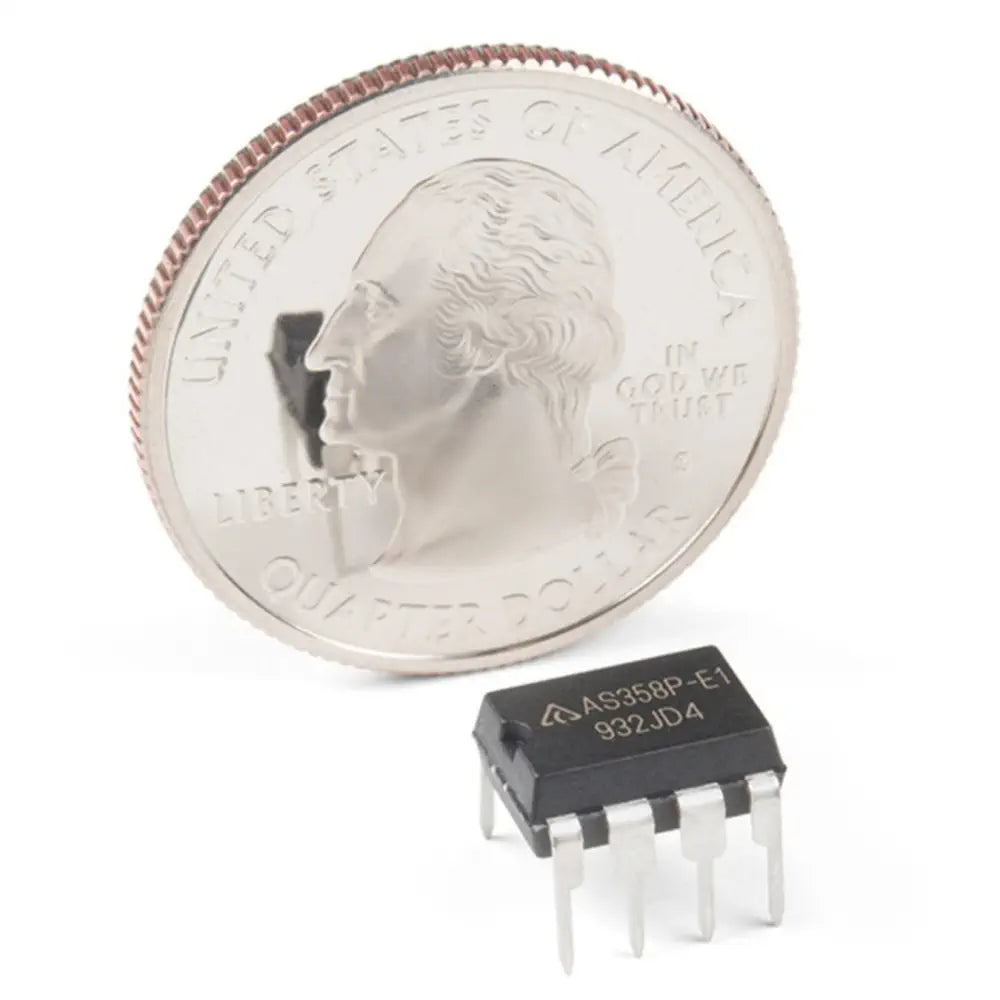

---Op-Amp AS358P (Through-Hole)

Title Default Title
Qty:

Description

  • Op-Amp AS358P (Through-Hole)
  • Offers two internally compensated op-amps
  • Comes in an 8-pin DIP package
  • Provides internally frequency compensated for unity gain
  • Includes transducer amplifiers, DC gain blocks and more
  • Handles a supply of 3-36VDC and sources up to 20mA per channel

The Op-Amp AS358P (Through-Hole) is a great, easy-to-use dual-channel Op-amp. AS358P applications include transducer amplifiers, DC gain blocks, and all the conventional op-amp circuits.

It can handle a supply of 3-36VDC and source up to 20mA per channel. This op-amp is great if you need to operate two individual op-amps from a single power supply. Comes in an 8-pin DIP package.

  • 1 x Op-Amp AS358P (Through-Hole)

PDF File

  • Large DC voltage gain: 100 dB
  • Wide bandwidth (unity gain): 1 MHz (temperature compensated)
  • Wide power supply range:
  • Single supply: 3V to 36V
  • Dual supplies: +/-1.5V to +/-18V
